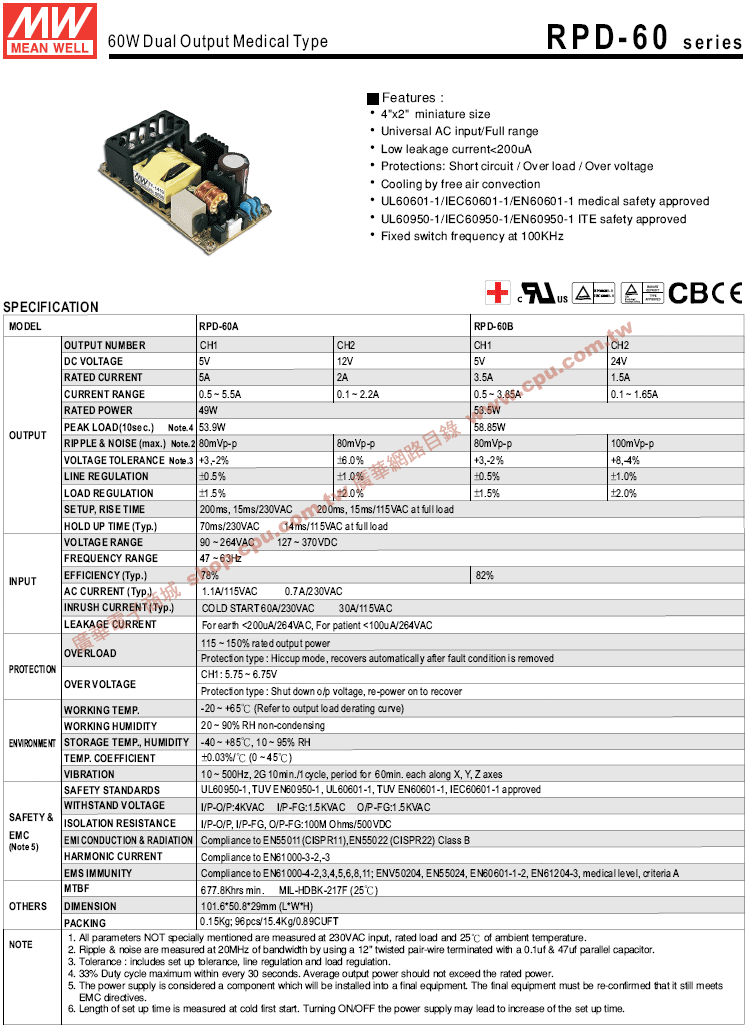

商品規格
Output︰5V, 0.5~3.85A +3%,-2%
24V, 0.1~1.65A +8%,-4%
R&N︰80mV / 100mV
Effi︰82%
Max.︰59W
--------------------------------------------------------------------------------------------------------------------

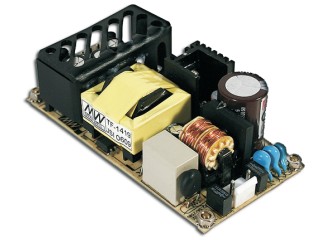

AC/DC 基板型(Open Frame Type)交換式電源供應器
Medical PCB Type
◎ PCB式,小瓦數機型無PFC
◎ 符合醫療等級安規認證
◎ 低洩漏電流,適合用於非病患接觸式醫療設備
商品介紹
AC input voltage range .......90~264VAC; 127~370VDC
AC inrush current ..............Cold start, 30A at 115VAC, 60A at 230VAC
DC adjustment range .........-5 ~ +10% rated output voltage (single output only)
Overload protection ...........115~150% hiccup mode, auto-recovery
Over voltage protection ......CH1: 115%~135% rated output voltage
Leakage current ................Less than 200uA at 264VAC
Setup, rise, hold up time ....200ms, 15ms, 70ms at full load and 230VAC
Withstand voltage ..............I/P-O/P: 4KVAC, I/P-FG: 1.5KVAC, 1 minute
Working temperature ..........-20ºC ~ +70ºC (refer to output derating curve)
Safety standards ...............UL60601-1, TUV EN60601-1 approved
EMC standards ..................EN55011 / EN55022 class B, EN61000-3-2,-3,
EN61000-4-2,3,4,5,6,8,11, ENV50204, EN61000-6-2,
EN60601-1-2, EN61204-3 medical level

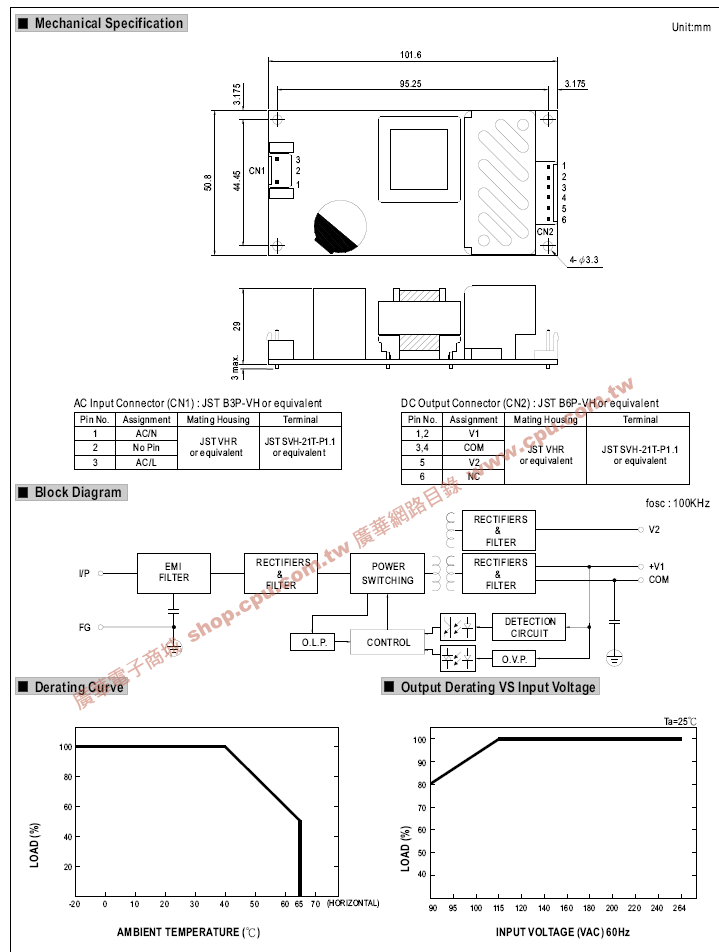

Connection ........................3,6P / 3.96mm pitch, JST P/N: B3P / B6P-VH
